Electronic Elmendorf Tearing Strength Tester
GT-C11A

Á¦Á¶¿ø :   GESTER
°ø±Þ¿ø :   ÇÑÀÏ°úÇÐ

Electronic Elmendorf Tearing Strength Tester GT-C11A



Product Introduction of elmendorf tearing strength tester

Application:

This Elmendorf Tearing Tester is designed for tearing resistance of textile, non-woven fabric, paper, paper board, thin film, ventilation tape, metal sheet material and etc.


Standards:

Textile

GB/T3917.1, ASTM D1424, DIN 53862, ISO13937-1, ISO4674-2, ISO9290, M&S P29, NF G07-149

Paper

GB/T455, APPITA P400, ASTM D689, BS 4468, CSA D9,

DIN 53128, EN 21974,ISO 1974, JIS P8116, PAPTAC D9, SCAN P11,

SNV 198482, TAPPI T414, UNI 644

Plastic

GB/T11999, ASTM D1922, ISO6383-2, JIS K7128-2

Non-woven

ASTMD5734

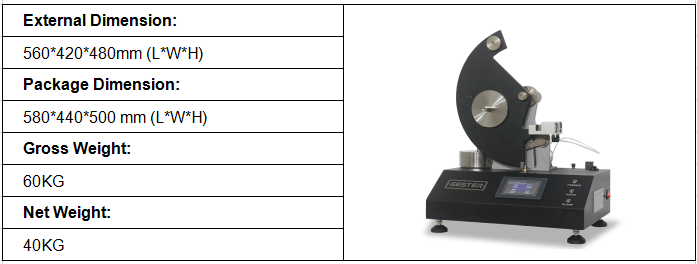

Dimensions of elmendorf tearing strength tester


 Dimensions of elmendorf tearing strength tester



Key Specifications of elmendorf tearing strength tester


Model

GT-C11A

Range of Tearing Force

16N / 32N / 64N

Accuracy

¡Â¡¾0.2£¥F¡¤S

Incision Length

20+/-0.2mm

Rip Length

43mm

Sample clamping methods

Pneumatic clamp

Power supply

AC 220V 50/60HZ 100W

Dimensions

560 x 420 x 480mm (L x W x H)

Weight

40kg

Standards accessories

1pc

Pendulum B (32N)

1pc

Pendulum C (64N)

1pc

Sample Template

Optional accessories

Optional

Air compressor

Optional

English operation software

Optional

Cable connect with PC

 elmendorf tear tester


Application Industry of elmendorf tearing strength tester

All kinds of materials can be tested on the Electronic Elmendorf Tearing Tester

elmendorf tear tester
